Biocompatible materials that can address key requirements of numerous hand and foot applications

A Non-Metal Alternative for Extremity Applications

PEEK-based devices for hand and foot applications are experiencing an increase in adoption, with growing clinical evidence demonstrating the benefits PEEK can offer. Cannulated implants for proximal interphalangeal fusions, and wedges for osteotomies offer some examples where PEEK-OPTIMATM polymers can drive superior performance.

Delivering solutions for hand, foot & ankle applications

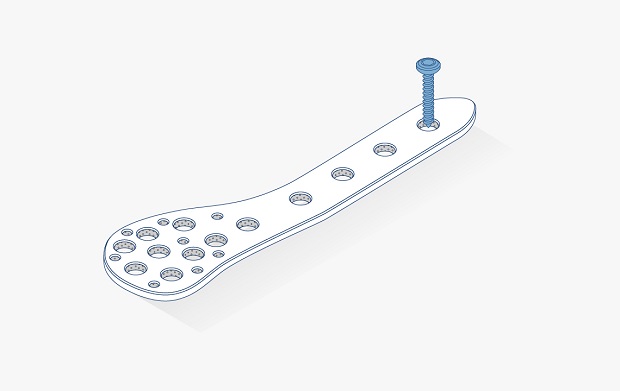

Fracture fixation plates

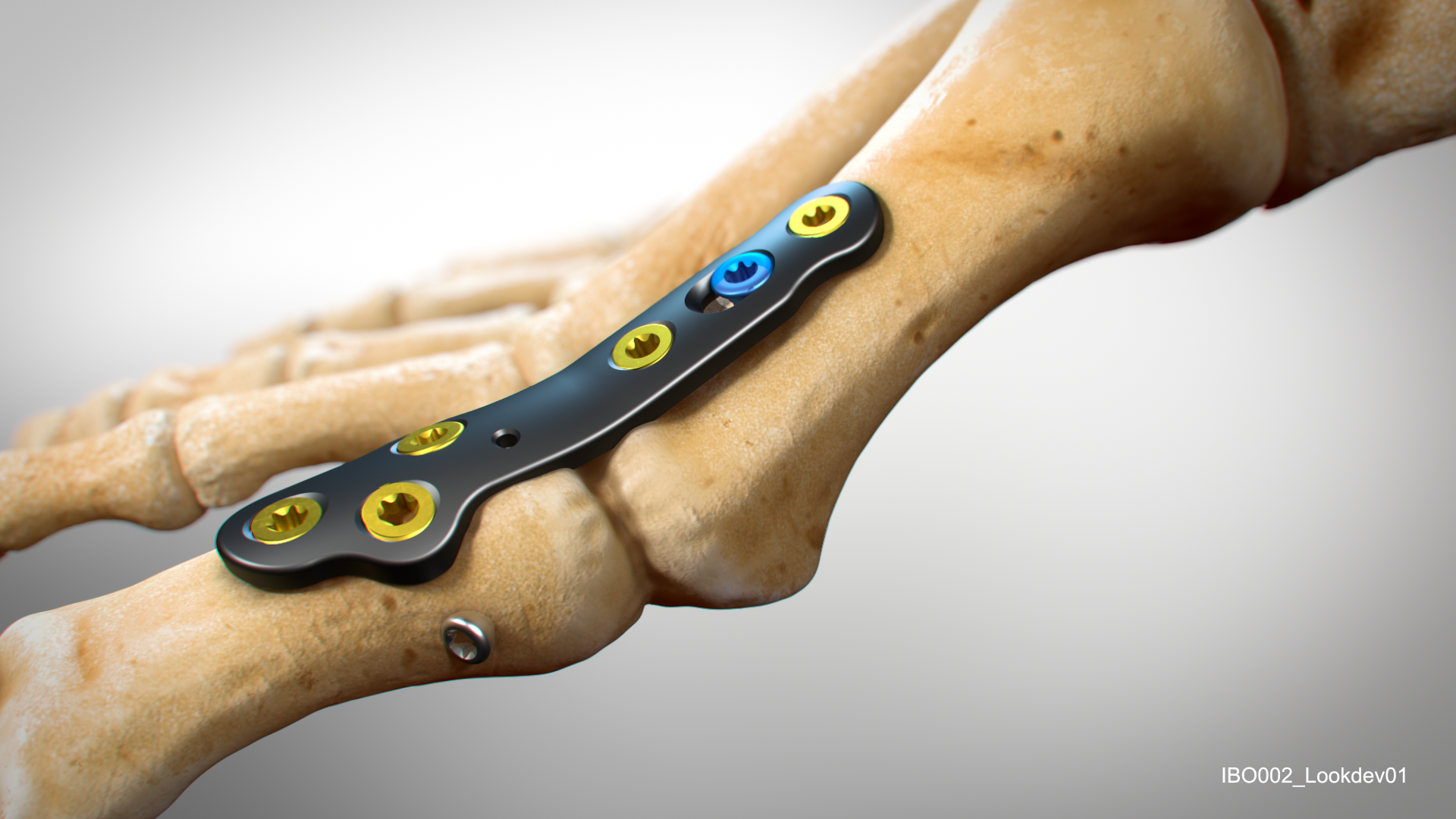

Pre-contoured anatomic plates

Both unfilled PEEK and carbon fiber reinforced PEEK materials have been successfully used in plating applications for the hand and foot.

Demonstrated benefits include:

  • Bioinert and biocompatible with modulus of elasticity close to cortical bone
  • Radiolucency allowing for a more accurate assessment of fusion1
  • Improved patient satisfaction2
Vector hammer toe solid assembly

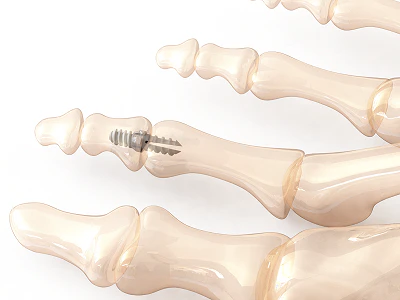

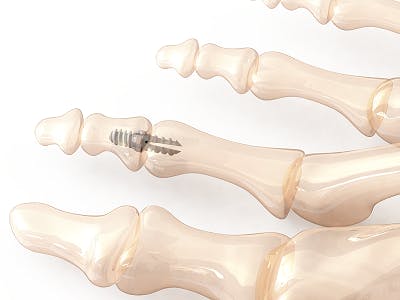

Hammertoe

PEEK-based intramedullary devices can provide similar advantages as metallic designs with potential additional benefits:

  • the radiolucency of the material can enable an easier assessment of fusion
  • the modulus of elasticity is very similar to bone, so there is minimal stress shielding at the arthrodesis site reducing risk factors that could disrupt normal bone healing5
  • PEEK-based devices can simplify removal because it can be easier to saw than metals
  • potential advantage in maintenance of correction because there is no risk of resorption of the graft material8
  • Improved level of direct bone contact in as early as 4 weeks3
  • New bone formation as early as 6 weeks4

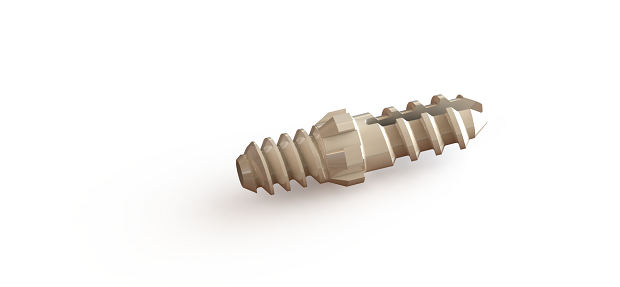

Image: Vector™ Hammertoe Correction System manufactured from PEEK-OPTIMA™ HA Enhanced, courtesy of Nvision Biomedical Technologies, Inc.™

Osteotomy Foot Cotton

Wedge osteotomy devices

Studies on implanted PEEK spacers for osteotomies in the foot demonstrate high fusion rates and conclude that PEEK offers:

  • an effective alternative to structural bone grafts6,7
  • potential advantage in maintenance of correction because there is no risk of resorption of the graft material8
  • spacers can be designed as wedges to be used with ancillary fixation or as stand-alone devices with integrated screws
  • Improved level of direct bone contact in as early as 4 weeks3
  • New bone formation as early as 6 weeks4

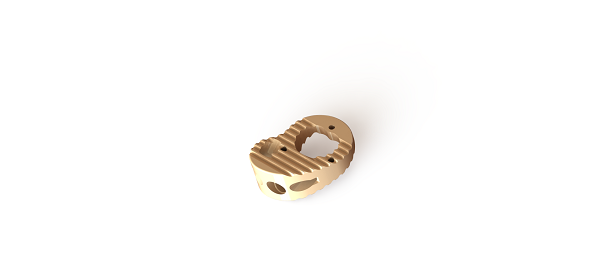

Image: The Trigon® Stand–Alone Wedge Fixation System, courtesy of Nvision Biomedical Technologies, Inc.™ Read more about it here

Pioneering composite polymer trauma plate solutions

Invibio has invested in research & development to push our carbon fiber (CFR) PEEK-OPTIMATM Ultra-Reinforced polymer to its maximum potential.

By collaborating with leading trauma experts, innovators and implant manufacturers, we have developed a community who is passionate about advancing patient outcomes through high performance CFR-PEEK polymer solutions.

Featured resources

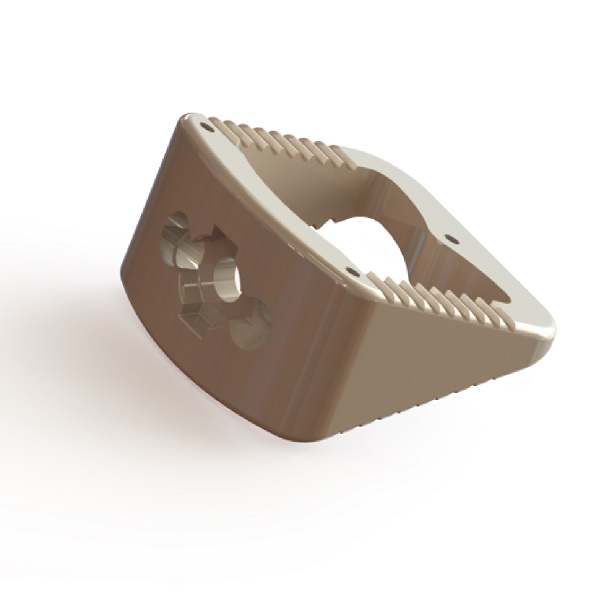

The Trigon® Stand-Alone Osteotomy Wedge Fixation System
press release

First FDA clearance for an osteotomy wedge system made of PEEK-OPTIMA™ HA Enhanced

Read more

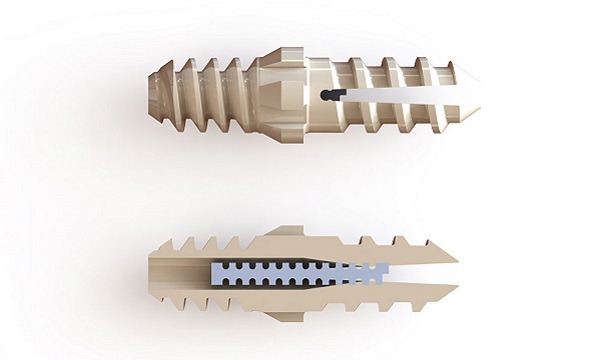

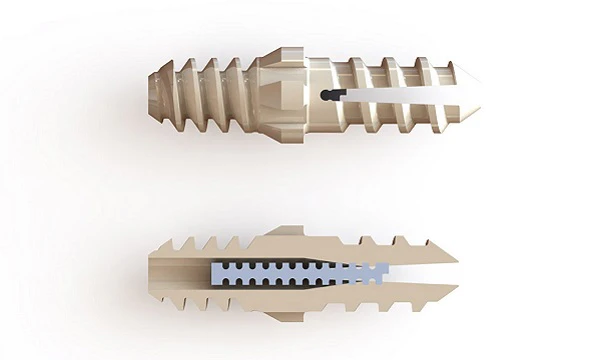

First foot and ankle implant made of PEEK OPTIMA HA Enhanced
press release
US FDA clears first foot and ankle implant made from PEEK-OPTIMA™ HA Enhanced
Read more

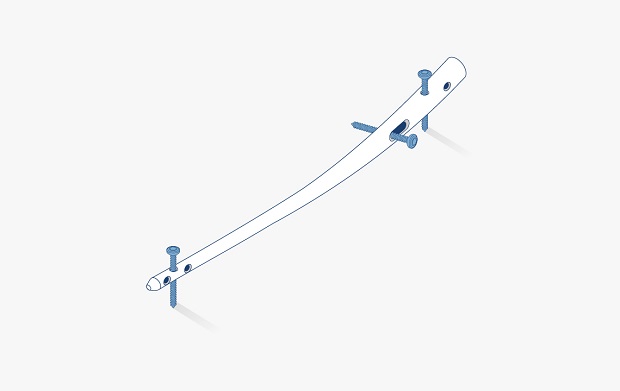

Intermedullary nails
Peer reviewed case report
Unique Applications of Carbon Fiber-Reinforced Polyetheretherketone Nails in Tibia and Ankle Injuries
Read case report in JOT
foot surgery picture
Peer reviewed evidence
Hammertoes: Proximal Interphalangeal Joint Arthrodesis with a PEEK Implant
Read now
Volleyball player holding a white ball
PEer reviewed case study
The use of Carbon-PEEK volar plate after distal radius osteotomy for Kienbock’s Disease in a volleyball athlete
Read the case study
